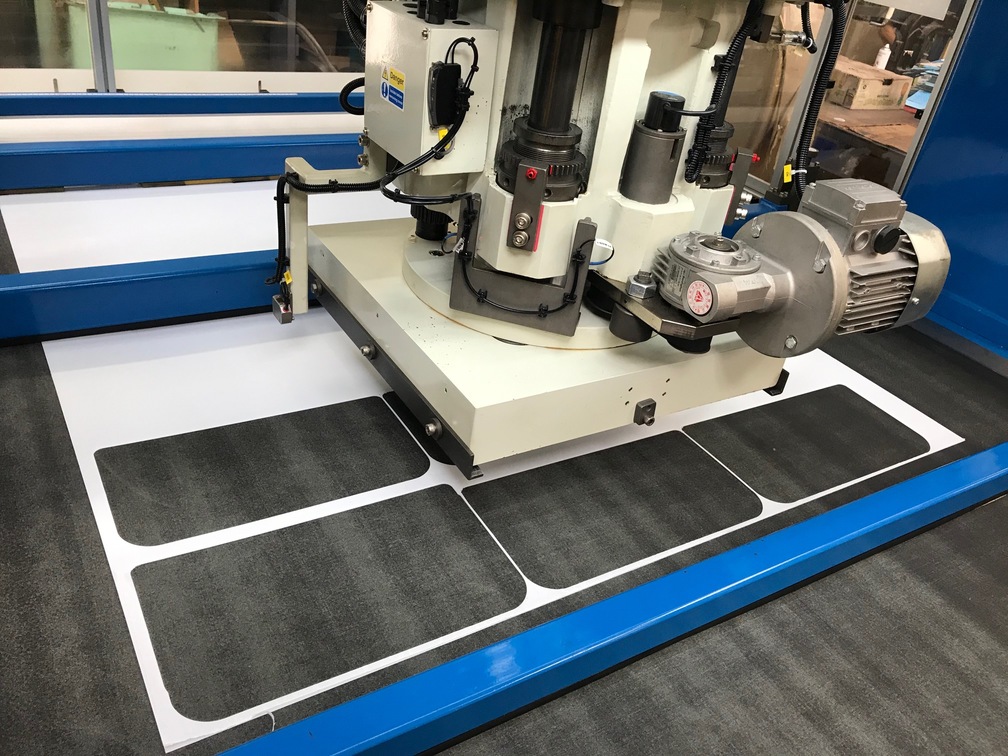

At RH Nuttall, we have made significant investments in state-of-the-art gasket cutting technology to position ourselves as industry leaders. Our Automatic Travelling Head Press (ATHP) machines are at the forefront of our operations, producing over 1,000,000 precision-cut parts each week.
While similar in function to manual machines, ATHP systems are enhanced with computer-aided precision settings, allowing for cuts within just millimeters of the previous stamped gasket. This advanced automation significantly increases cutting speed, making it ideal for high-volume gasket production. The result? Faster turnaround times, greater material efficiency, and cost savings for our customers.
These machines utilize relatively inexpensive tooling, making them highly cost-effective for large production runs. Additionally, tooling impressions can be increased, enabling multiple gaskets to be stamped simultaneously—lowering per-unit costs even further.

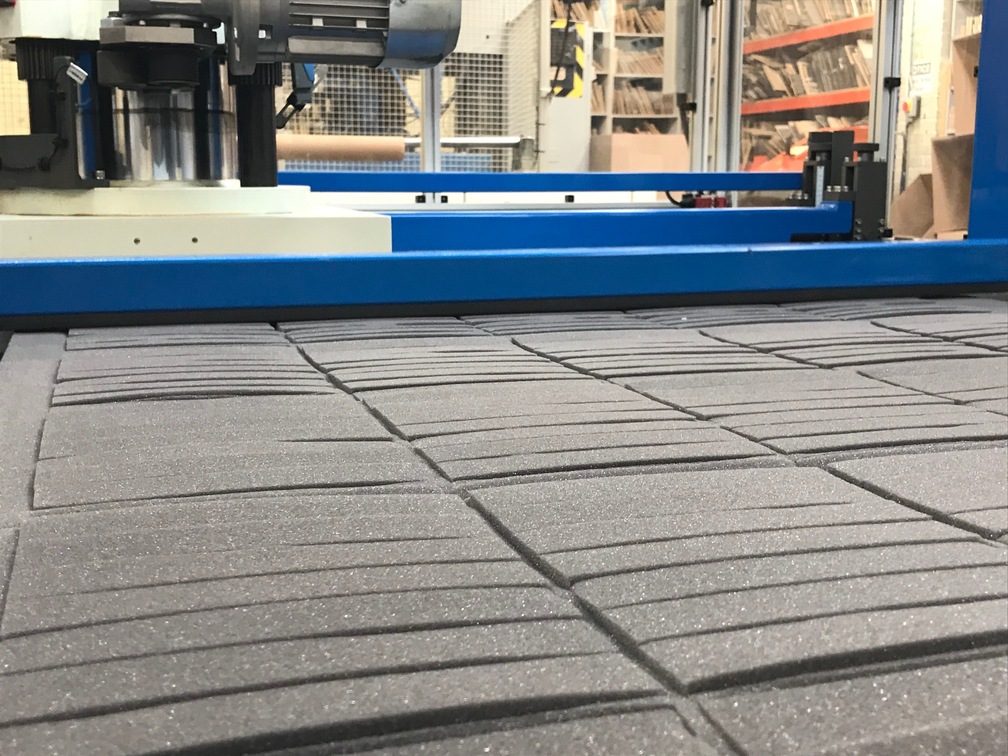

Gaskets are stamped using a variety of base materials, including rubber, sponge, foam, and cork. The process is supported by hydraulic air feeds that securely clamp the material onto a revolving cutting belt. Once setup is complete, the system automatically adjusts the cutting pitch to maximize yield and minimize waste. If required, gaskets can also be manufactured with self-adhesive backing before cutting.
Advantages of Automatic Travelling Head Press Gasket Manufacturing
Cost-Effective Tooling – Bespoke tooling can be produced within days at a fraction of the cost of multi-cavity molding tools. Depending on the gasket complexity, tooling can accommodate up to eight cavities, significantly boosting production speed and reducing costs.
Ideal for High-Volume Production – With exceptional speed and precision, ATHP machines are perfect for large batch runs. Multi-cavity tooling enables the production of over 10,000 gaskets per hour, streamlining operations and maximizing efficiency.
Superior Quality & Accuracy – Our cutting technology ensures each gasket is manufactured to exact specifications, with spacing accuracy of within 1mm, minimizing waste and ensuring consistent, high-quality results.
Industry-Leading Lead Times – Thanks to our extensive fleet of ATHP machines, we maintain fast turnaround times of just 4-5 working days, from tooling setup to final production. With a large inventory of common base materials and various thicknesses stocked in-house, we ensure rapid fulfillment without delays to your production lines.
